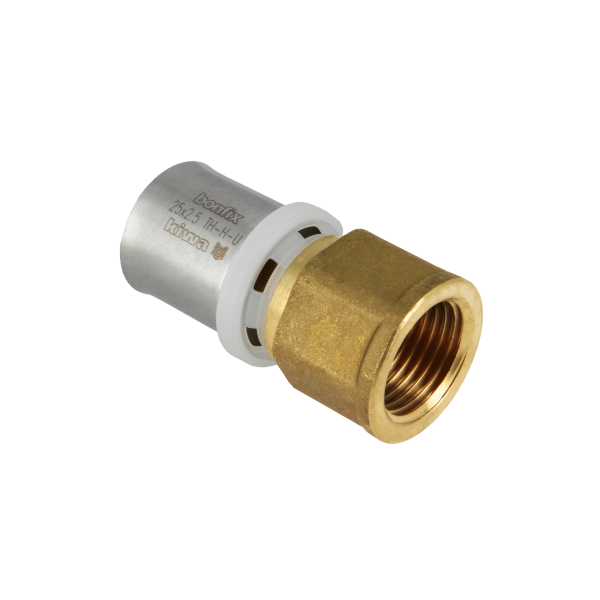

Straight coupling

Alu-press fittings

female iron x press

Straight coupling

Omrekentabel

Buitendraad
inch			mm
	¹⁄₁₆"	-	7,723
	¹⁄₈"	-	9,728
	¹⁄₄"	-	13,157
	³⁄₈"	-	16,662
	¹⁄₂"	-	20,955
	⁵⁄₈"	-	22,911
	³⁄₄"	-	26,441
	⁷⁄₈"	-	30,201
	1"	-	33,249
1	¹⁄₈"	-	37,897
1	¹⁄₄"	-	41,910
1	¹⁄₂"	-	47,803
1	³⁄₄"	-	53,746
	2"	-	59,614
2	¹⁄₄"	-	65,710
2	¹⁄₂"	-	75,184
2	³⁄₄"	-	81,534

Binnendraad
inch			mm
	¹⁄₁₆"	-	6,561
	¹⁄₈"	-	8,566
	¹⁄₄"	-	11,445
	³⁄₈"	-	14,950
	¹⁄₂"	-	18,631
	⁵⁄₈"	-	20,587
	³⁄₄"	-	24,117
	⁷⁄₈"	-	27,877
	1"	-	30,291
1	¹⁄₈"	-	34,939
1	¹⁄₄"	-	38,952
1	¹⁄₂"	-	44,845
1	³⁄₄"	-	50,788
	2"	-	56,656
2	¹⁄₄"	-	62,752
2	¹⁄₂"	-	72,226
2	³⁄₄"	-	78,576

Legend
*	Conical gas thread
**	Long internal gas thread
^P*	TH / H / U / F / CH - Profile
KVBG	De Koninklijke Vereniging van Belgische Gasvaklieden
G	Gastec QA
K	KIWA ATA
AN	Tin plated
CR	Polished chrome
	Per bag
	Per box
	New products

Product number	Dimensions			PROFILE	KOMO	KIWA	ATA
2000305	¹⁄₂	x	16	TH^P*				5	80
2000315	¹⁄₂	x	20	TH^P*				5	60
2000325	¹⁄₂	x	26	TH^P*				5	50
2000330	³⁄₄	x	16	TH^P*				5	60
2000340	³⁄₄	x	20	TH^P*				5	60
2000350	³⁄₄	x	26	TH^P*				5	40
2000360	1	x	26	TH^P*				5	40
2000365	1	x	32	TH^P*				5	30
2000370	1 ¹⁄₄	x	40	TH^P*				1	14
2000375	1 ¹⁄₂	x	50	TH^P*				1	10
