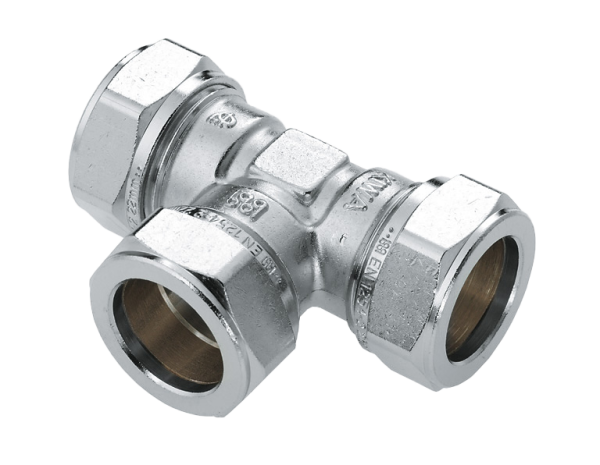

Tee

Brass and nickel plated compression fittings

3 x compression

Tee

Tee

Omrekentabel

Buitendraad
inch			mm
	¹⁄₁₆"	-	7,723
	¹⁄₈"	-	9,728
	¹⁄₄"	-	13,157
	³⁄₈"	-	16,662
	¹⁄₂"	-	20,955
	⁵⁄₈"	-	22,911
	³⁄₄"	-	26,441
	⁷⁄₈"	-	30,201
	1"	-	33,249
1	¹⁄₈"	-	37,897
1	¹⁄₄"	-	41,910
1	¹⁄₂"	-	47,803
1	³⁄₄"	-	53,746
	2"	-	59,614
2	¹⁄₄"	-	65,710
2	¹⁄₂"	-	75,184
2	³⁄₄"	-	81,534

Binnendraad
inch			mm
	¹⁄₁₆"	-	6,561
	¹⁄₈"	-	8,566
	¹⁄₄"	-	11,445
	³⁄₈"	-	14,950
	¹⁄₂"	-	18,631
	⁵⁄₈"	-	20,587
	³⁄₄"	-	24,117
	⁷⁄₈"	-	27,877
	1"	-	30,291
1	¹⁄₈"	-	34,939
1	¹⁄₄"	-	38,952
1	¹⁄₂"	-	44,845
1	³⁄₄"	-	50,788
	2"	-	56,656
2	¹⁄₄"	-	62,752
2	¹⁄₂"	-	72,226
2	³⁄₄"	-	78,576

Legend
*	Conical gas thread
**	Long internal gas thread
KVBG	De Koninklijke Vereniging van Belgische Gasvaklieden
G	Gastec QA
K	KIWA ATA
AN	Tin plated
CR	Polished chrome
	Per bag
	Per box
	New products

Product number	Dimensions					GASTEC	KIWA	ATA
82499	6	x	6	x	6				5	200
82486	8	x	8	x	8				5	150
82453	10	x	10	x	10				5	100
82453AN	10	x	10	x	10				5	100
82452	12	x	12	x	12				5	100
82452AN	12	x	12	x	12				5	100
82923	14	x	14	x	14				5	60
82501	15	x	15	x	15				5	60
82501AN	15	x	15	x	15				5	60
52871	18	x	18	x	18				5	40
82502	22	x	22	x	22				5	30
82502AN	22	x	22	x	22				5	30
82503	28	x	28	x	28				5	20
82503AN	28	x	28	x	28				5	20
82516	35	x	35	x	35				5	10
82517	42	x	42	x	42				1	5
82451	54	x	54	x	54				1	3
