BONFIX

T-Kupplung, reduzierend

Alu-pers fittings

3 x Alu-pers
T-Kupplung, reduzierend
Omrekentabel
Buitendraad
inch
mm
116"-7,723
18"-9,728
14"-13,157
38"-16,662
12"-20,955
58"-22,911
34"-26,441
78"-30,201
1"-33,249
118"-37,897
114"-41,910
112"-47,803
134"-53,746
2"-59,614
214"-65,710
212"-75,184
234"-81,534
Binnendraad
inch
mm
116"-6,561
18"-8,566
14"-11,445
38"-14,950
12"-18,631
58"-20,587
34"-24,117
78"-27,877
1"-30,291
118"-34,939
114"-38,952
112"-44,845
134"-50,788
2"-56,656
214"-62,752
212"-72,226
234"-78,576

Legende
*Kegeliges Rohrgewinde
**Langes Innenrohrgewinde
P*TH / H / U / F / CH - Profil
KVBGDe Koninklijke Vereniging van Belgische Gasvaklieden
GGastec QA
KKIWA ATA
ANTin
CRPoliertes Chrom
Pro Beutel
Pro Karton
Neue Produkte
Artikelnummer Abmessungen PROFILKOMO KIWA ATA Stock
2000800 Productfoto16x20x16THP* 540
2000808 Productfoto20x16x16THP* 540

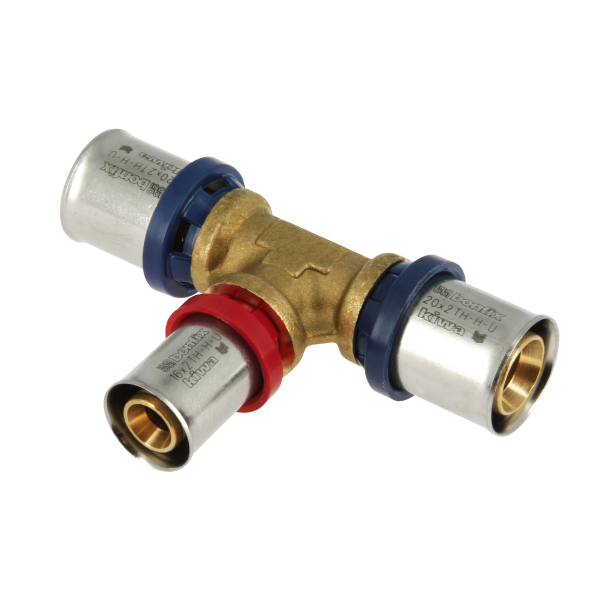

2000810 Productfoto20x16x20THP* 530
2000816 Productfoto20x20x16THP* 530

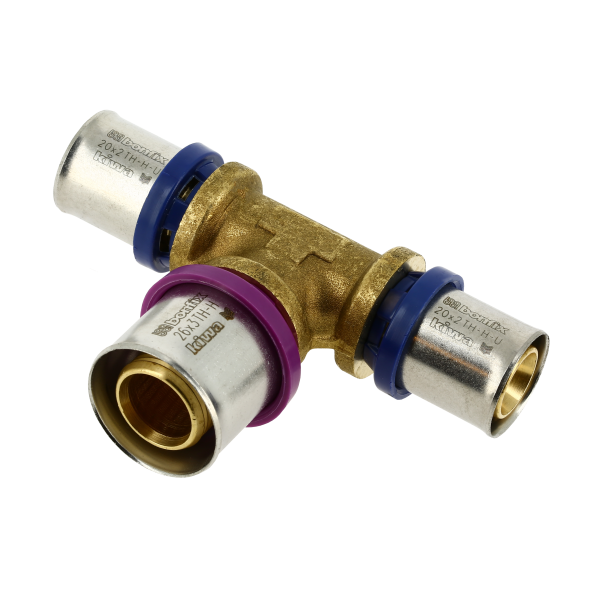

2000820 Productfoto20x26x20THP* 520
2000860 Productfoto26x16x16THP* 520
2000862 Productfoto26x16x20THP* 520
2000866 Productfoto26x16x26THP* 520
2000870 Productfoto26x20x20THP* 520
2000872 Productfoto26x20x26THP* 520

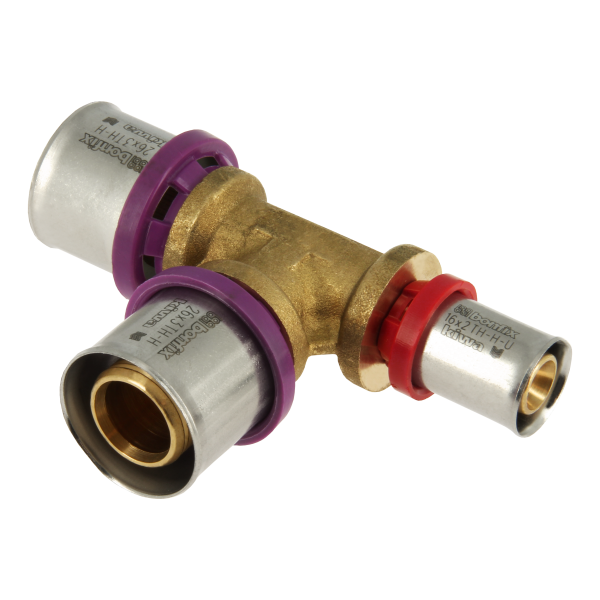

2000874 Productfoto26x26x16THP* 520
2000875 Productfoto26x26x20THP* 520
2000877 Productfoto26x32x26THP* 515
2000878 Productfoto32x16x32THP* 510

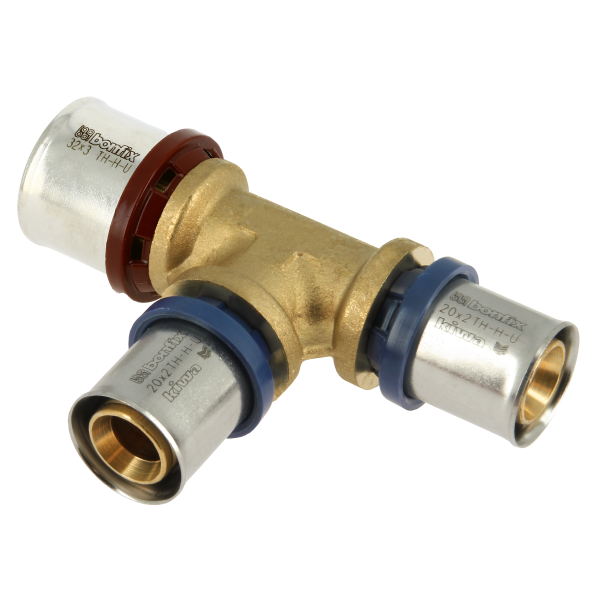

2000879 Productfoto32x20x20THP* 510
2000881 Productfoto32x20x26THP* 515
2000882 Productfoto32x20x32THP* 510
2000889 Productfoto32x26x26THP* 510
2000890 Productfoto32x26x32THP* 510
2000891 Productfoto40x26x32THP* 18
2000892 Productfoto40x26x40THP* 16
2000893 Productfoto40x32x32THP* 18
2000894 Productfoto40x32x40THP* 16
2000895 Productfoto50x26x50THP* 14
2000896 Productfoto50x32x50THP* 14
2000897 Productfoto50x40x50THP* 14
2000898 Productfoto63x40x63THP* 12
2000899 Productfoto63x50x63THP* 12
